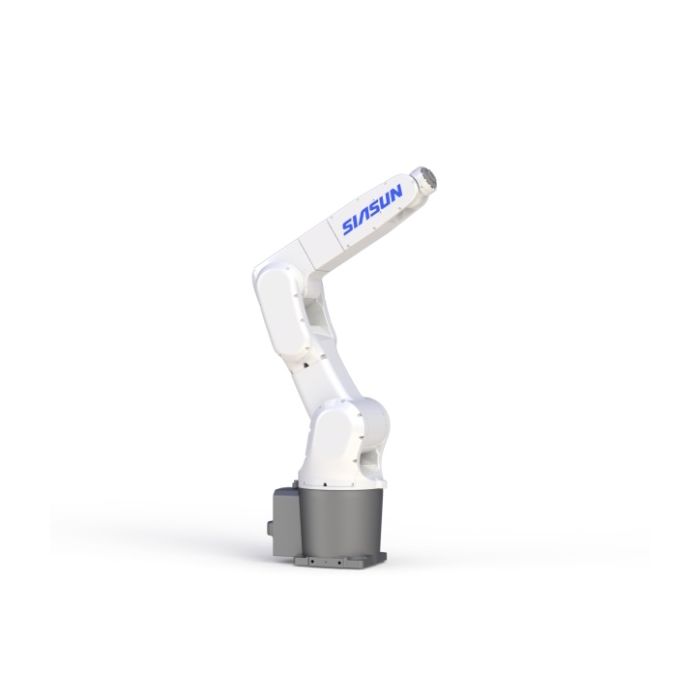

SIASUN Low-Payload Industrial Robot (SN7B-7/0.90)

The model designation commonly reflects key performance parameters: 7 kg rated payload and approximately 0.90 m reach (SIASUN lists a 906 mm reach). SIASUN highlights repeatable precision (±0.02 mm repeatability) and “industry-leading motion speed” as core attributes, framing the robot as suitable for applications that must balance cycle time with quality.

Within SIASUN’s broader industrial robot lineup, the SN7B-7/0.90 sits in the “small/low payload” segment, intended for compact automation cells and production lines where a smaller footprint and faster motion profiles can improve throughput while maintaining accuracy.

Design and Features

Compact 6-axis articulated architecture

The SN7B-7/0.90 is a 6-DOF articulated arm designed to provide multi-angle access to fixtures, conveyors, and workpieces. SIASUN emphasizes a compact structure that supports integration into small automation units—a common requirement in electronics, appliance, and high-mix manufacturing where floor space is limited.

Internal cabling and cell-friendly routing

SIASUN states that the robot features internal cabling and a streamlined exterior design. Internal routing typically reduces snag risk, simplifies dress pack management, and improves reliability in dense tooling setups (for example, where multiple peripherals—grippers, sensors, or weld torches—must be routed through tight cell geometries).

Motion performance and control approach

SIASUN describes a variable acceleration algorithm designed to leverage mechanical performance limits while maintaining stable operation, aiming to maximize production efficiency and meet strict takt times. For precision, SIASUN highlights global error compensation, contributing to the robot’s published repeat positioning accuracy.

Environmental protection (wrist IP67)

A key differentiator in SIASUN’s product description is the wrist protection rating of IP67, intended to support long-term operation in harsher environments—particularly where dust, splash, or process residues may be present near the end effector. (Other parts of the robot may have different protection levels depending on configuration; SIASUN specifically calls out the wrist.)

Technology and Specifications

SIASUN publishes the following core parameters for the SN7B-7/0.90:

• Robot type: 6-axis articulated industrial robot

• Degrees of freedom (DOF): 6

• Rated payload: 7 kg

• Maximum reach: 906 mm

• Repeatability: ±0.02 mm

• Protection rating (wrist): IP67

Third-party industrial catalogs also describe typical deployment characteristics—such as mounting options (floor/ceiling) and common application domains (automotive and electronics)—that align with the robot’s small-payload positioning.

How these specs translate into production performance

• A 7 kg payload class typically supports end effectors such as compact grippers, small weld torches, dispensing heads, screwdrivers, or inspection sensors—while still leaving capacity for tooling mass and cable management.

• A ~906 mm reach is often used for bench-top and conveyor-side cells, enabling the robot to service multiple fixtures (pick points, assembly nests, inspection stations) from a single base location.

• ±0.02 mm repeatability is commonly targeted for consistent placement and path repeatability in assembly and welding tasks where process results depend on stable, repeatable motion.

• IP67 at the wrist helps where the end-effector area is exposed to fluids or particulate, supporting reliability and reduced maintenance interruptions.

Applications and Use Cases

Handling and machine tending

SIASUN lists handling and loading/unloading as application areas, which commonly includes machine tending (CNC, presses, test stations) and conveyor pick-and-place. Low-payload robots are frequently deployed where cycle time and repeatable motion matter more than heavy lifting.

Assembly automation

SIASUN explicitly includes assembly in the SN7B-7/0.90’s application area list. Typical assembly use cases for a 7 kg, ~0.9 m reach robot include screwdriving, component insertion, clip-fit operations, adhesive/dispense steps, and fixture-to-fixture transfers inside compact cells.

Welding and process tasks

SIASUN lists welding as a supported application area, and industrial directories categorize the SN7B-7/0.90 among welding-capable robot options (depending on end-effector and process configuration). In practice, a robot in this payload/reach class may support light-duty welding (for example, small part welding cells) where a compact arm improves accessibility and cycle time.

Electronics and automotive sub-assemblies

Third-party listings identify the SN7B-7/0.90 as applicable to electronics and automotive environments—often reflecting use in sub-assembly lines, module handling, and small-part joining tasks rather than heavy body-in-white operations.

Advantages / Benefits

Higher speed for shorter cycle times

SIASUN highlights a motion approach using variable acceleration to exploit mechanical limits while maintaining stable operation, intended to reduce cycle time and improve throughput.

Precision for consistent quality

SIASUN’s stated ±0.02 mm repeatability and global error compensation support consistent operations in assembly and welding, where repeatable tool placement reduces defect rates and rework.

Easier integration in compact automation units

The robot’s compact structure, modular design, and internal cabling are positioned for integration into small cells—useful when retrofitting automation into existing production lines or designing high-density multi-cell layouts.

Better resilience near the end effector

The IP67 wrist protection is intended to improve durability in harsher environments—especially where splash, dust, or process contamination concentrates near the tool.

FAQ Section

What is the SIASUN SN7B-7/0.90?

The SIASUN SN7B-7/0.90 is a 6-axis low-payload industrial robot rated for 7 kg payload, 906 mm reach, and ±0.02 mm repeatability, designed for handling, assembly, loading/unloading, and welding applications.

How does the SN7B-7/0.90 work in an automation cell?

It uses programmed motion paths to move a tool (gripper, torch, dispenser, etc.) through repeatable trajectories. SIASUN highlights internal cabling, modular design for integration, and a high-precision compensation approach to maintain repeatable positioning.

Why is the SN7B-7/0.90 important for high-throughput manufacturing?

SIASUN positions the model around high motion speed and precision, aiming to meet both quality and cycle time requirements—two core constraints in modern assembly and small-part process lines.

What are the benefits of the SIASUN SN7B-7/0.90?

Key benefits include 7 kg payload, 906 mm reach, ±0.02 mm repeatability, compact integration features (internal cabling, modular design), and IP67 wrist protection for improved resilience near the tool.

Summary

The SIASUN Low-Payload Industrial Robot SN7B-7/0.90 is a compact 6-axis articulated robot engineered for high-speed, high-precision automation in handling, assembly, loading/unloading, and welding cells. With published specifications of 7 kg payload, 906 mm reach, ±0.02 mm repeatability, and IP67 wrist protection, SIASUN positions the SN7B-7/0.90 as a production-oriented robot that balances cycle time, integration simplicity, and reliability in modern manufacturing environments.
