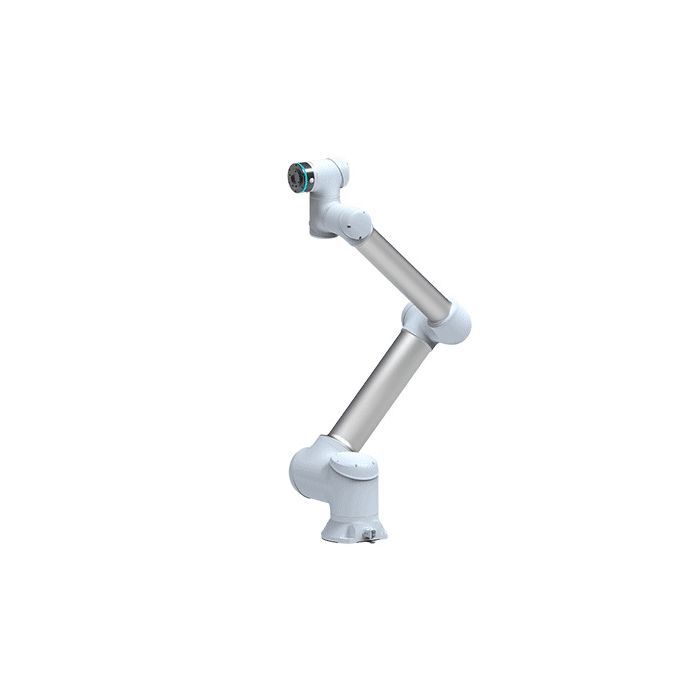

SIASUN GCR12-1300 (GCR12-1300)

In SIASUN’s positioning, the GCR series combines collaborative safety concepts, low power consumption, and a model range that scales payload and reach for different automation needs.

The GCR12-1300 model is specified for a 12 kg maximum payload and 1300 mm reach, placing it in the mid-payload segment of the GCR line—large enough to handle many industrial end-effectors (grippers, screwdrivers, dispensers, light welding/finishing tools) while remaining suitable for compact cells and mixed human-robot workflows. SIASUN lists assembly, quality inspection, painting, and polishing among its typical application areas.

Design and Features

Collaborative robot architecture (6-axis articulated arm)

The GCR12-1300 uses a 6-joint articulated structure (6 degrees of freedom), which enables the tool center point (TCP) to approach workpieces from multiple angles. This geometry supports common cobot tasks such as station-to-station transfers, angled insertions during assembly, consistent camera positioning for inspection, and repeatable surface finishing paths. SIASUN lists the GCR series as a 6-axis collaborative robot solution emphasizing ease of operation and rapid deployment.

Built-in safety concepts and collaborative operation framing

SIASUN’s GCR product descriptions commonly reference collision detection and force/power detection, and present the platform as having functional safety certification (e.g., TÜV SÜD referenced by SIASUN for GCR models). While actual “collaboration” depends on the full risk assessment and the end-effector/tool hazards, the GCR series is positioned for safe human-robot interaction compared with traditional fenced industrial robots.

Human-guided teaching (“traction teach”) and deployment practicality

A recurring GCR feature is hand-guided teaching (often described as “traction teach”), intended to reduce programming complexity and accelerate setup for new tasks. This programming approach is also reflected in the GCR user manual materials. In real deployments, hand-guided teaching is typically paired with waypoints, simple path logic, and optional vision or I/O triggers to create robust production routines.

Integration interfaces and cell connectivity

SIASUN states that the GCR platform supports external interfaces such as DI/DO and AI/O, enabling integration with common peripherals: safety devices, light curtains (as applicable), conveyors, grippers, vacuum generators, sensors, and inspection cameras. The combination of standard I/O and cobot-friendly programming is frequently used for fast rollouts in pilot cells and lean manufacturing lines.

Technology and Specifications

SIASUN publishes the headline specifications for the GCR12-1300 on its product page:

• Robot type: Collaborative robot (cobot), articulated arm

• Degrees of freedom (DOF): 6

• Max payload: 12 kg

• Reach: 1300 mm

• Repeatability: ±0.03 mm

• Max TCP speed: 3.8 m/s

• Max straight-line speed: 1.5 m/s

• IP class: IP54 / IP65 (as presented by SIASUN for the model line)

Interpretation of these specs in practice

• A 12 kg payload class generally supports a wide range of end-of-arm tooling and part weights for assembly and handling—especially when combined with conservative tool inertia and safe speed/force settings in collaborative modes.

• A 1300 mm reach often enables the robot to service multiple fixtures or stations from one base, which is valuable for compact U-cells, inspection workstations, and multi-step assembly lines.

• ±0.03 mm repeatability is typically associated with consistent placement and repeatable path execution—important for inspection positioning, precise assembly steps, and stable finishing paths.

Load envelope and application limits
The GCR series user manual includes load-related diagrams (including a GCR12-1300 payload diagram) and emphasizes that payload capability depends on center-of-gravity offset and inertia, which can affect service life and performance. This is a standard engineering consideration for cobots: a “12 kg payload” rating is not a universal allowance for any 12 kg tool at any offset; it must be validated against the load curve and inertia limits.

Applications and Use Cases

SIASUN lists assembly, quality inspection, painting, and polishing as application areas for the GCR12-1300. These represent common cobot deployments where flexibility and quick setup can generate high ROI:

Assembly and production assistance

In assembly, a 12 kg, 1300 mm reach cobot often supports:

• part presentation and kitting assistance,

• screwdriving or fastening routines,

• component insertion with repeatable approach angles,

• fixture loading/unloading and station-to-station transfers.

The reach allows a single robot to cover multiple jigs, bins, or feeder positions, while the repeatability supports stable cycle quality when the process depends on consistent positioning.

Quality inspection and metrology positioning

For inspection tasks, cobots are frequently used as repeatable sensor/camera positioners—moving a camera, scanner, or probe to consistent viewpoints. SIASUN explicitly includes “Quality Inspection” for the model and provides “intelligent inspection workstation” case-study context on the product page.

Painting, coating, and controlled-path dispensing

SIASUN includes “Painting” as an application area. In practice, this may involve controlled motion for light coating or controlled-path processes when paired with appropriate process equipment and safety measures. Collaborative operation is especially sensitive in painting/coating due to tool hazards and environmental controls, so deployments typically rely on careful risk assessment and engineered safeguards.

Polishing and surface finishing

Polishing benefits from repeatable path execution and consistent tool orientation. With a mid-payload arm, the GCR12-1300 can support small to medium finishing tools and workpieces, provided the force strategy, compliance mechanism, and tool inertia are matched to the robot’s load limits. SIASUN lists polishing as a target use case.

Advantages / Benefits

Payload and reach suited to “real” production tooling

Compared with entry-level cobots, the GCR12-1300’s 12 kg payload and 1300 mm reach support a broader range of end-effectors and part sizes, including larger grippers, vacuum arrays, and multi-sensor inspection rigs—often without requiring a larger industrial robot and full fencing.

Precision for repeatable quality

SIASUN’s published ±0.03 mm repeatability supports consistent placement and path repeatability for tasks like inspection positioning and assembly alignment, which can reduce rework and stabilize cycle outcomes.

Speed ceiling for higher-throughput cobot cells

The model’s listed max TCP speed (3.8 m/s) and max straight-line speed (1.5 m/s) indicate a performance envelope intended to support practical cycle times for collaborative automation (subject to safety limits, payload/inertia, and cell design).

Practical system engineering through load curves and documentation

The availability of load diagrams and hardware documentation (e.g., load curve guidance) helps integrators validate payload/inertia limits and design safer, longer-lived applications—particularly important for mid-payload cobots where tool inertia can become a limiting factor.

FAQ Section

What is the SIASUN GCR12-1300?

The SIASUN GCR12-1300 is a 6-axis collaborative robot with 12 kg payload, 1300 mm reach, and ±0.03 mm repeatability, intended for assembly, inspection, painting, and polishing.

How does the GCR12-1300 work?

It moves a tool through programmed positions using six motorized joints. SIASUN positions the GCR series around collaborative safety concepts (collision/force detection) and hand-guided teaching (“traction teach”) to simplify setup and redeployment.

Why is the GCR12-1300 important?

It provides a practical balance of payload, reach, and precision for collaborative automation—helping factories automate repetitive tasks while keeping cells adaptable to product changes and short production runs.

What are the benefits of the GCR12-1300?

Key benefits include 12 kg payload, 1300 mm reach, ±0.03 mm repeatability, and a design intended for flexible applications such as assembly and inspection, supported by load curve documentation for correct tool sizing.

Summary

The SIASUN GCR12-1300 is a mid-payload 6-axis collaborative robot designed for flexible factory automation where quick deployment and human-robot proximity are valuable. With manufacturer-listed specifications of 12 kg payload, 1300 mm reach, ±0.03 mm repeatability, and speed limits suitable for practical cycle times, the GCR12-1300 targets common cobot applications including assembly, quality inspection, painting, and polishing. Supporting documentation such as load diagrams and load-curve guidance helps integrators size tools correctly and build reliable, production-ready collaborative workcells.
