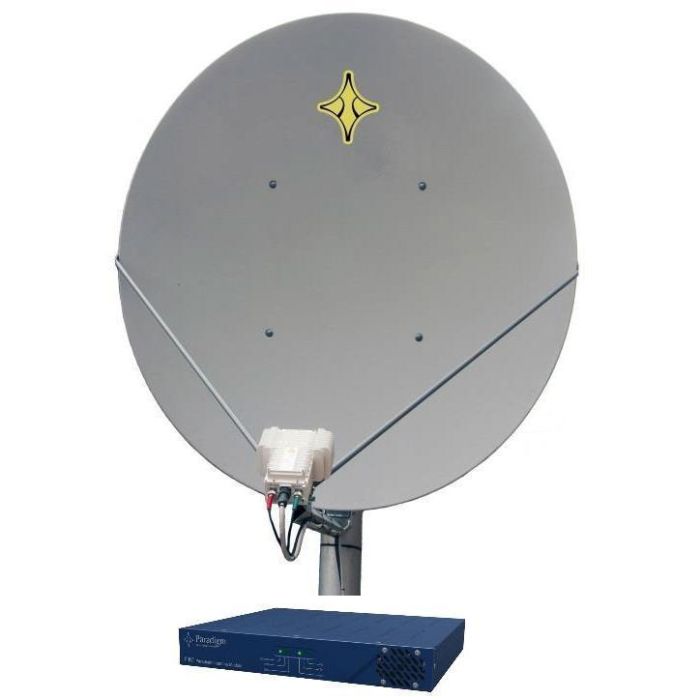

Paradigm Connect 180
The Connect180 terminal is the largest of the fixed Global Xpress Certified Solution. Combining both optimal performance and functionality, the Connect180 provides access to the most advanced IP satellite services. The terminal is ideal for applications demanding very high availability and very high bandwidth and offers the lowest costing airtime of all Global Xpress terminals.
Designed for demanding environments, the Connect180 offers a variety of features to achieve the required accuracy needed for the best possible GX performance, including the One Touch Commissioning function to enable simple RF-chain setup. Tthe Connect180 is offered as a standard terminal, with relevant accessories. Installation manuals and a quick start guide are also supplied on CDROM. For ease of setup, a tool kit with compass is provided.
Supplied with either a Kingpost, Non-Penetrating Roof Mount or Paradigm ISO Container Mount, the antenna system can be deployed/installed in any location.Terminal M&C and modem operations are performed by the Indoor Paradigm Interface Module (PIM), which can optionally be supplied as a Rack Mount unit. For scenarios where the modem is required to operate outside, Paradigm offers an Outdoor PIM option.
|PRODUCT TYPE||SATELLITE INTERNET|
|USAGE AREA||GLOBAL (EXCEPT POLAR REGIONS)|
|ANTENNA SIZE||180 cm|
|WEIGHT||220.462 lbs. Approx.|
|INGRESS PROTECTION||IP 52 (TRANSCEIVER), IP 65|
|BAND||Ku BAND, X BAND|
|OPERATING TEMPERATURE||-40°C to 70°C|
• 98cm Reflector
• Backing Structure & Boom
• 5W Transceiver & Feed
• Indoor PIM
• 30m Cable Set*
• Basic Assembly Tool Kit
• Installation CD
