TranSAT RST620B is an Iridium mobile or fixed satellite telephone that provides the option of a handheld or a completely hands free voice and data telephone for a wide variety of marine, land and air applications with a wide range of antenna options available.
Iridium Beam TranSAT (Fixed) RST620
Beam TranSAT Fixed Satellite Telephone provides a complete hands-free voice and data telephone for a wide variety of marine, land and air applications. TransSAT operates in very much the same way you would expect a traditional car phone, providing a compact user handset that can be located close to the driver/captain, hands-free or private communications, integrated speaker, microphone and transceiver supporting a professional looking installation.
The terminal provides a compact fully functioned user handset and supports both hands-free and privacy modes of operation, automatically switching between either mode with the handset in or out of the cradle.
The system can also be used as a permanent non hands-free solution simply by not connecting the microphone. The loud ring indication through the speaker system makes it an ideal installation in a noisy environment.
The RST620 is equipped with an RS232 serial data port to access Iridium data services.
There are added features that enable the unit to be integrated into communications systems via the line in/out, serial data connectivity, radio mute, horn alert and a robust inbuilt 10 - 32 VDC power supply.
|PRODUCT TYPE||SATELLITE PHONE|
|USE TYPE||AVIATION, MARINE, VEHICULAR|
|USAGE AREA||100% GLOBAL|
Beam TranSAT 620B Features
• Slim line compact installation
• Voice, SMS, SBD and Circuit Switched Data capable
• Compact fully functional user handset for privacy mode
• Full Duplex Hands-free calling
• Echo cancelling technology
• Mic / Audio Integration to communication systems
• Horn Alert / Radio Mute capable
• RS232 D9 Serial Interface
• Accessory / Ignition sense
• SMA Connectors – Iridium Antenna
• FCC, Industry Canada, and ITU approval
• 12 month repair or replacement warranty

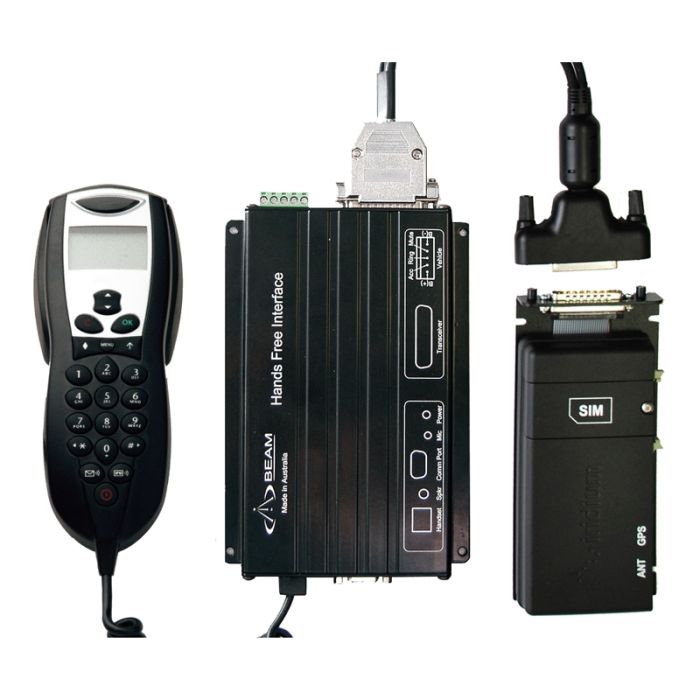

Beam RST620B package contains:
1 x RST620B Hands Free Interface (HFI) module
1 x RST970 (Intelligent Handset with cradle)
1 x Speaker
1 x Microphone
1 x 9522B Iridium L-Band transceiver
1 x L-Band transceiver bracket & Velcro fastener
1 x L-Band transceiver cable
1 x 3-wire Power cable harness & 2 Fuses
1 x SMA – TNC Antenna Cable Adaptor
1 x Socket wrench / Allen key
1 x Printed RST620B User Manual
1 x Printed Iridium Antenna Installation Guide
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
