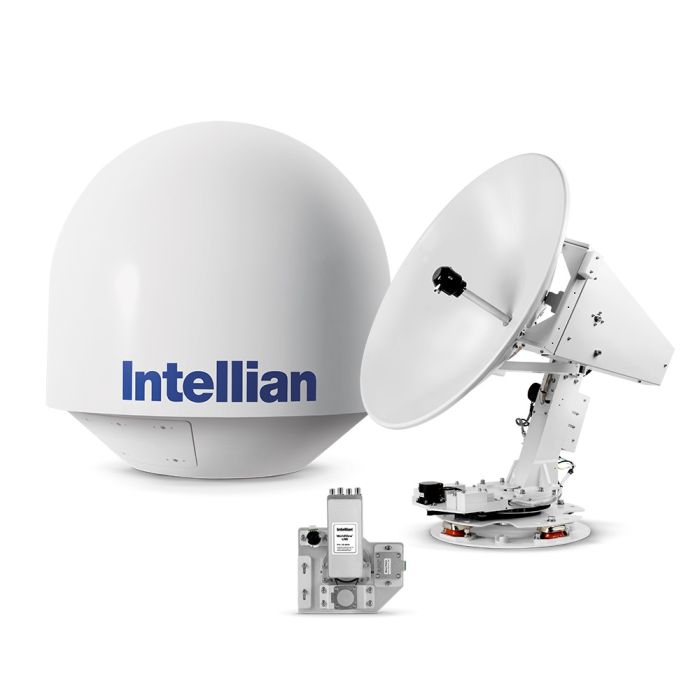

DISCONTINUED - Intellian t80W 3-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (T3-91AW2)

Intellian’s t80W provides outstanding performance in an 85cm (33.5in) reflector with the added benefits of Intellian’s proprietary WorldView technology. This system receives SD or HD programming from any Ku-band satellite TV service around the globe without requiring LNB changes or re-wiring of the system when the vessel travels from one region to another.

Out of stock

BRAND:
INTELLIAN
MODEL:
t80W
PART #:
T2-917W2
Warranty:
3 YEARS PARTS 2 YEAR LABOR
AVAILABILITY:
DISCONTINUED
SKU:
Intellian-t80W-System-T2-917W2

Intellian t80W 3-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (T2-917W2)
The Intellian t80W is the world’s first marine satellite TV antenna system that truly works with any Kuband satellite TV service around the globe without requiring LNBs to be swapped out or re-wiring the system when the vessel travels from region to region.

The fully stabilized, 3-axis t80W is a 85cm satellite TV antenna system that is exclusively designed to support viewing all Standard Definition (SD) and HD programming broadcast through both DVB and the latest DVB-S2 satellite TV service standards.

Integrated with the exclusive, patented, groundbreaking WorldView™ LNB module and Intellian’s exclusive preprogrammed Global satellite library, the t80W allows you to tune into any channel on any satellite by simply pushing the button on your remote control. The t80W will automatically switch between circular polarized programming in North, Central and South Americas, and linear polarized programming in Europe, the Middle East, and the Asia Pacific region.

Built with Intellian’s extremely high vibration and shock standards, the t80W’s simplified yet sophisticated mechanical design is capable of withstanding the most severe marine environment and is guaranteed to track and lock onto the satellite signal instantly in all weather conditions.

Intellian WorldView™ LNB module
Intellian t80W provides the ultimate convenience to connect you up to thousands of Free TV, Pay TV, Standard Definition, and High Definition programming all over the world with one LNB module which incorporates multi (8) LO frequencies.

DVB / DVB-S2 signal reception
The fully stabilized, 3-axis t80W is a 85cm satellite TV antenna system that is exclusively designed to support viewing all Standard Definition (SD) and HD programming broadcast through both DVB and the latest DVB-S2 satellite TV service standards.

Dedicated Management Ethernet Port
The Management Ethernet Port on the front of ACU enables direct and simple network connection between a PC and the ACU. The Management Port supports DHCP network connection by default, allowing automatic IP configurations and quick access to Intellian’s remote management solution, Aptus Web.

Global satellite library
The t80W includes the pre-programmed global satellite library which allows boaters to select the desired satellite while travelling from region to region. Once the satellite is selected the WorldView LNB module will automatically switch to the corresponding local frequency to receive the signal.

Rugged construction
Built with Intellian’s extremely high vibration and shock standards, the t80W’s simplified yet sophisticated mechanical design is capable of withstanding the most severe marine environment and is guaranteed to track and lock onto the satellite signal instantly in all weather conditions.

Wireless Connectivity
The built-in Wi-Fi enables the ACU to be wirelessly connected and can be either turned on and off by a switch. Any kind of wireless devices such as PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly.

Intellian t80W System Diagram

Specifications

MODEL t80W
PART # T2-917W2
PRODUCT TYPE SATELLITE TV
USAGE AREA REGIONAL - SEE COVERAGE MAP
BRAND INTELLIAN
USE TYPE MARITIME
ACCESSORY TYPE ANTENNA
ANTENNA SIZE 85 cm (33.5 inch)
OPERATING TEMPERATURE -25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE -40°C to 80°C (-40°F to 176°F)
FREQUENCY Ku BAND
CERTIFICATIONS CE COMPLIANCE, FCC
WEIGHT 82,2 kg (181,2 livres)
RADOME HEIGHT 114 cm (44.9 inch)
RADOME DIAMETER 113 cm (44.5 inch)
RECEPTION FREQUENCY Ku-band: 10.7 ~ 12.75 GHz
MINIMUM EIRP 44dBW
AZIMUTH RANGE 680º
RF OUTPUT DUAL / QUAD OUTPUT
