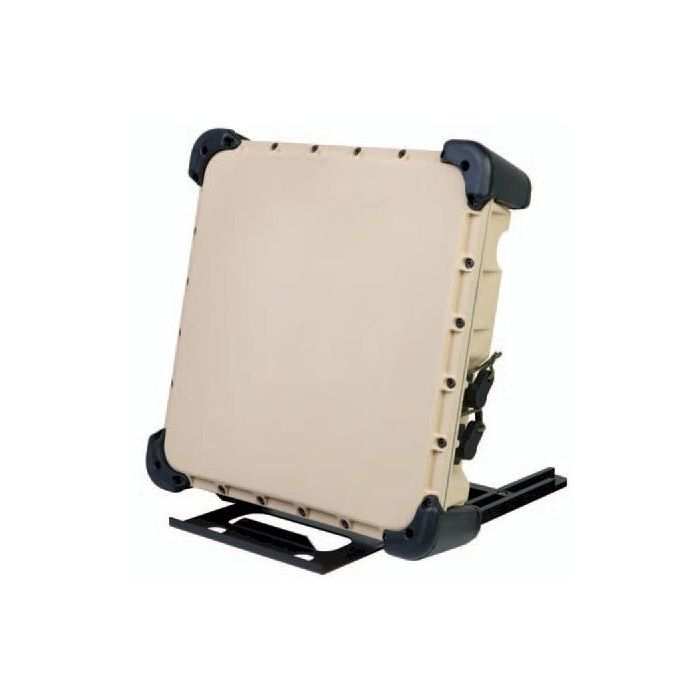

Harris RF-7800B-DU024 Land Portable Broadband Global Area Network (BGAN) Satellite Internet Terminal

Out of stock

BRAND:
HARRIS
PART #:
RF-7800B-DU024
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Harris-RF-7800B-DU024-BGAN
Harris RF-7800B-DU024 Land Portable Broadband Global Area Network (BGAN) Satellite Internet Terminal
The Harris RF-7800B-DU024 Land Portable Broadband Global Area Network (BGAN) SATCOM Terminal provides tactical radio network capability that enhances the FALCON III? multiband radio family. The RF-7800B-DU024 is a Class 2 BGAN Land Portable Terminal that provides data rates of up to 432 kbps. The RF-7800B-DU024 BGAN Terminal is designed for operation in harsh environmental conditions.

The RF-7800B-DU024 terminal is a manually pointed antenna system capable of rapid deployment for sending and receiving data once pointed at the satellite. When used with the AN/PRC-117G(V)1(C) or the RF-7800M-MP manpack radios, the terminal provides a multimode system that utilizes ad-hoc networking to automatically route between mobile wideband networked line-of-sight (LOS) nodes, adding global beyond-line-of-sight (BLOS) satellite connectivity. The Falcon III integrated system manages Inmarsat subscriber costs through the automated routing between ANW2 LOS and BLOS nodes. The system is designed to ensure a seamless tactical network-centric BLOS connectivity to the existing FALCON III tactical networks, providing secure IP data transfer capability and increased communications reliability. When used with the Falcon III manpack radios, the Harris BGAN terminals can provide an increased effective throughput of up to 2 Mbps over the Inmarsat network due to TCP/IP acceleration and compression algorithms within the ANW2 waveform, further reducing Inmarsat subscriber costs.
The Harris BGAN Terminal IP data is encrypted by the Sierra II? Type-1 algorithms in the AN/PRC-117G or the Acropolis? II AES encryption algorithms in the RF-7800M-MP. The embedded software of the manpack radio provides the ability to fully configure, remotely control and provide status and fault monitoring of the RF-7800B-DU024 BGAN Terminal using the radio?s front panel, making it the easiest BGAN Terminal to set up and operate.
The RF-7800B-DU024 can be considered for global network connectivity solutions when used as a standalone terminal with a computer for applications such as law enforcement, homeland security, or humanitarian and disaster relief efforts.
Capabilities
- Full IP Capability: Email, Web browsing, FTP, etc.
- Inmarsat Certified
- Land Mobile User Equipment Class 2
- BGAN Background user data rates up to 432 kbps
- BGAN Streaming QoS: User data rates of 32, 64, 128 kbps
- Global coverage
- Multi-user capability of up to 11 simultaneous primary user contexts/sessions IP network bridging mode & modem mode support
FCC, C5, GMPCS/ITM Certified
Specifications
BGAN Satellite: TX: 1626.5-1660.5 MHz
L-Band Frequency: RX: 1525-1559 MHz
Operation: Full-duplex, BLOS operation
Dimensions 9.5 D x 9.5 H x 2.5 W in. (24 x 24 x 6.5 cm)
Weight 6.2 lbs. (2.8 kg)
Power Options
- Single BA-5590 Style battery
- 120/240 AC power supply
- Standard vehicle DC adapter
Interfaces
- Data: Ethernet, USB
- ISDN: Voice (4 kbps), data (64 kbps)
- DC Power: 10?34 VDC
- User-removable SIM card slot
- Simultaneous use of all interfaces
- Environmental
- Rugged MIL-STD-810F
- Immersion 1 meter
- EMI MIL-STD-461E
Environmental
Rugged: MIL-STD-810F
Immersion: 1 meter
EMI: MIL-STD-461E
Compliance: ROHS

Specifications

PART # RF-7800B-DU024
PRODUCT TYPE SATELLITE INTERNET
USAGE AREA GLOBAL (EXCEPT POLAR REGIONS)
BRAND HARRIS
NETWORK INMARSAT
SERVICE INMARSAT BGAN
USE TYPE PORTABLE
FEATURES INTERNET
