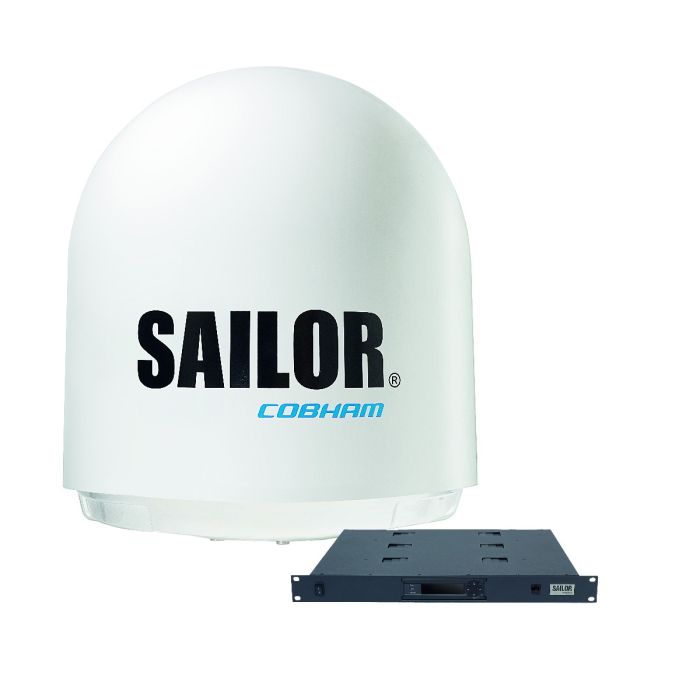

DISCONTINUED - Cobham SAILOR 900 VSAT Ku System (407090B-00501)

The new SAILOR 900 VSAT is a powerful, quick-to-deploy, stabilized VSAT antenna system with integrated GPS, advanced Ku-band satcom technology and the highest RF performance in the 1m antenna class. Pre-configured, always perfectly balanced, factory tested and backed by our class-leading service and support, the SAILOR 900 VSAT brings reliability and simplicity to maritime professionals, worldwide.

Out of stock

BRAND:
COBHAM
MODEL:
SAILOR 900 VSAT-Par
PART #:
407090B-00501
AVAILABILITY:
DISCONTINUED
SKU:
Cobham-SAILOR-900-VSAT-System

Cobham SAILOR 900 VSAT Ku System (407090B-00501)
The SAILOR 900 VSAT is an advanced maritime stabilized Ku-band antenna system built with the same high quality and high performance that has made SAILOR the leading name in professional maritime communication equipment over decades. With hundreds of units shipped worldwide in a very short time truly set a new standard.

A Top Performer
SAILOR 900 VSAT is an easy and quick to deploy three axis stabilized VSAT antenna with the highest RF performance in the 1m antenna class. Verified by extensive Eutelsat tests, you can trust that SAILOR 900 VSAT works with any leading VSAT platforms in the market.

Reduce Cost
Every SAILOR 900 VSAT antenna system comes factory-tested, equipped ready-togo with standardized top quality RF components (8W BUC, LNBs, OMT/diplexer) - and only one cable between antenna and below-deck. The antenna is shipped fully balanced, configured and does not need work prior to installation. This time and cost saving, plus the top RF performance make SAILOR 900 VSAT the most cost effective Ku-band antenna on the market to deploy.

Increase up Time
The decision to install VSAT on a ship stems from the desire to have alwayson broadband connectivity at a simple flat rate fee. These networks are readily available from many providers (list upon request). Regardless of how and where you operate the SAILOR 900 VSAT, you can be confident of maximum availability because the system has several simple features to make sure your broadband connection is up, and stays up.

Two Antennas - One Modem
SAILOR 900 VSAT can operate two antenna systems on a single modem without the need for an extra box to manage that feature. This requirement arises when the vessel needs a satellite connection even when there are obstructions in the way. The two SAILOR antenna controllers manage the connection between satellite and modem.

More Flexibility
New high throughput satellite (HTS) services in Ku band such as Intelsat EpicNG (and others) are making an impact, being offered by numerous maritime VSAT service providers. The SAILOR antenna systems with their unique software-controlled architecture are the ideal choice to utilize these modern spot beam services to best extent. Alternatively, the SAILOR 900 VSAT Ku could be converted from Ku to Ka band to operate on Ka band HTS satellites, such as Inmarsat GX and Telenor Thor7.

Specifications

MODEL SAILOR 900 VSAT-Par
PART # 407090B-00501
PRODUCT TYPE SATELLITE INTERNET
USAGE AREA REGIONAL - SEE COVERAGE MAP
BRAND COBHAM
NETWORK VSAT
USE TYPE MARITIME
ACCESSORY TYPE ANTENNA
ANTENNA SIZE 103 cm (41 inch)
OPERATING TEMPERATURE -25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE -40ºC to 85ºC (-40ºF to 185ºF)
FREQUENCY Ku BAND
WEIGHT 126,5 kg. / 279 livres
RADOME HEIGHT 150.0 cm (58.9 inch)
RADOME DIAMETER 130 cm (51.3 inch)

What's included

INCLUDED IN SYSTEM
- 407009B-00501 Above Deck Unit (ADU), incl. 103cm reflector, 8W BUC, 2x Multi-Band LNBs, OMT, Diplexer, Mounting Accessories.
- 407016C-00505 Antenna Control Unit (ACU) with AC Power input for 19" rack mounting (1U).
- User & Installation Manual.
- AC Power cord
- NMEA Multi-plug.
- 2x 1m 75 Ohm coax cable TX/RX ACU-VMU.
- Ethernet cable.
