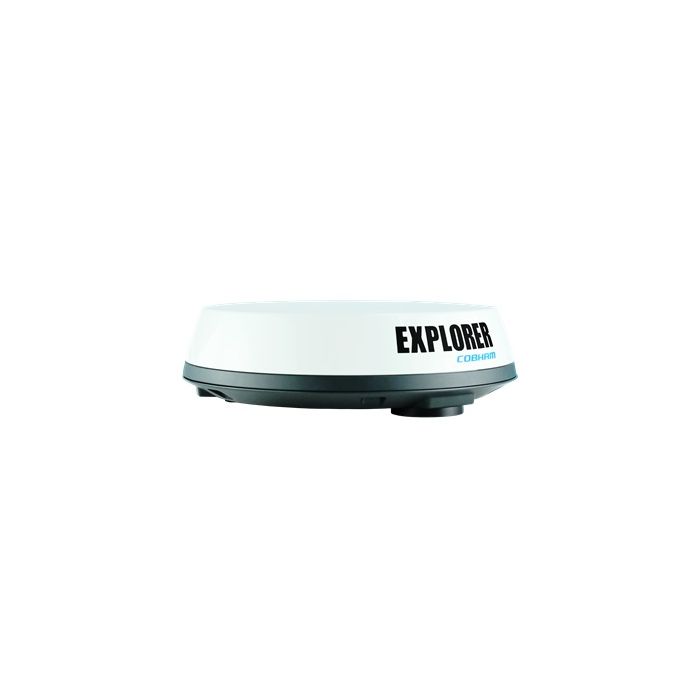

Cobham BGAN Explorer 323
Compact voice and broadband solution EXPLORER 323 is an ultra compact BGAN terminal for voice and data communication on-the-move, a perfect match for PRISM PTT+.
The one-piece system consists of a combined tranceiver and switched beam antenna with integrated wifi.
Whether you’re engaged in humanitarian operations, cargo or rail transportation, telemedicine or emergency services, you need easy deployable communication equipment you can always rely on. Regardless of time or place.
Instant communication
Simply place the terminal on the roof - it is easily mounted with optional magnetic mounts - and connect your phone to the EXPLORER app or log onto the wireless network with your PC to turn the vehicle into a mobile communication hub.
No moving parts
The beam switching antenna is ultra compact and lightweight (just 3.6 kg / 7.9 lbs), ideal for vehicles or trains on-the-move. It is designed for robust and durable use with no moving parts.
No roaming
BGAN offers mobile broadband connectivity wherever you go at fixed pricing with no roaming fees. With the EXPLORER 323 you know your cost of communication regardless of the number of borders you cross.
First of its kind
As an ultra-portable vehicular terminal, EXPLORER 323 is the first terminal with an Inmarsat Class 12 type approval, enabling it to be used for both M2M and traditional BGAN.
Specifications
| MODEL | EXPLORER 323 |
|---|---|
| PART # | 403723A-00500 |
| PRODUCT TYPE | SATELLITE INTERNET |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| BRAND | COBHAM |
| NETWORK | INMARSAT |
| SERVICE | INMARSAT BGAN |
| USE TYPE | VEHICULAR |
| ACCESSORY TYPE | TERMINAL |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| OTHER DATA INTERFACES | 2X ETHERNET |
| DATA SPEED | UP TO 448 / 464 kbps (SEND / RECEIVE) |
| STREAMING IP | 32 kbps, 64 kbps |
| SUPPORTED LANGUAGES | ENGLISH, CHINESE, FRENCH, GERMAN, PORTUGUESE, RUSSIAN, SPANISH |
| INGRESS PROTECTION | IP 66 |
| FREQUENCY | L BAND (1-2 GHz) |
| FEATURES | PHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VIDEO STREAMING, FoIP (FAX) |
| CERTIFICATIONS | CE COMPLIANCE, FCC, GMPCS |
| HARMONIZED TARIFF NUMBER | 85176200 |
| CONSTELLATION | 3 SATELLITES |
| HEIGHT | 97 mm (3,82 pouces) |
| DIAMETER | 321 mm (12,7 mm) |
| WEIGHT | 3,6 kg (7,9 livres) |
What's included
Included in system
- Fully integrated Antenna and Terminal
- Color: White
- Hybrid cable for 12/24V DC power and Ethernet (6m / 19.7ft)
- Quick Start Guide
- Drilling template for mounting
Inmarsat BGAN Coverage Map
This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
