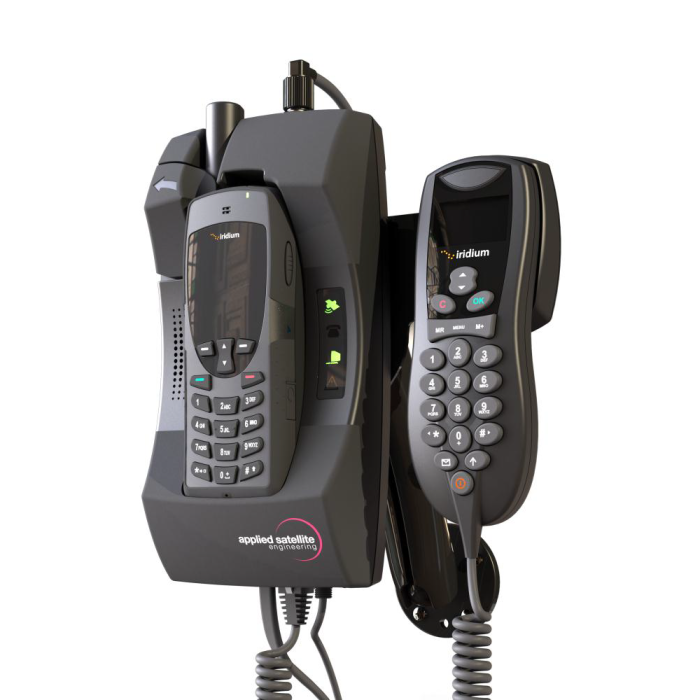

BlueSky Docking Station w/ Handset for Iridium 9555 Satellite Phones (ASE-DK050-H87)

BlueSky Docking Station w/ Handset for Iridium 9555 Satellite Phones (ASE-DK050-H87)

In typical installations, the Iridium 9555 handset docks into a rugged locking cradle. The cradle supplies charging power, provides status indication, and supports external antenna options so the satellite phone can be used reliably from inside a building, vessel bridge, truck cab, or remote site—without requiring the user to hold the handheld phone in view of the sky.

Design and Features

Docking cradle with secure restraint and small footprint

The ASE-DK050 family is described as using a rugged locking restraint that secures the Iridium 9555 in the cradle “in any environment,” with an ergonomic design intended to keep the installation compact (for example, bridge or vehicle mounting).

Corded intelligent privacy handset (the “H87” bundle)

The ASE-DK050-H87 designation refers to the docking station bundled/configured with a corded handset, enabling more conventional “telephone-style” calling for local use while the Iridium 9555 remains docked. Product descriptions emphasize that this handset is corded, lightweight, latched/ready, and provides “instant status and operational information” through an easy-to-read display/graphics.

Smart Dial and audible tone/status feedback

A distinctive part of the DK050 positioning is “Enhanced Smart Dial,” described as automatically detecting the correct dialing format for the destination country and helping place the call once the number is entered. The system also uses specific audio tones to alert the operator to conditions such as satellite out of sight, low signal strength, and other system states.

Large status icons for quick checks

The DK050 documentation highlights large status indicator icons (readable at a distance) that work alongside the Iridium handset display for setup, troubleshooting, programming, and operation—useful in bridge/vehicle environments where the operator may not be directly in front of the cradle.

Indoor-to-outdoor workflow

A common use case for docking systems is “use the phone indoors, undock it when leaving.” DK050 literature explicitly describes docking the Iridium phone for indoor access and then undocking the handset for outdoor use, leaving with the phone “fully charged and ready to go.”

Technology and Specifications

Power input and electrical characteristics

The DK050 is designed for practical fixed and mobile power environments:

• Power input: 9–36 VDC (unregulated), supporting vehicle and vessel DC systems.

• Peak power consumption: listed as 12 W peak.

• Built-in charger: included as part of the docking station feature set.

Data interface

The DK050 documentation describes a mini-USB / USB data interface and frames it as enabling data connections (including dial-up style internet connectivity use cases through the Iridium phone’s data features).

Handset interface and ports

The DK050 documentation lists a handset interface via RJ-45 for the “Iridium intelligent handset,” and also references a reset button for system reset.

Environmental and mechanical characteristics

Public DK050 documentation lists:

• Operating temperature (electronics): −15°C to +70°C

• Exposure: “Dry, protected location per IEC 60945” (installation environment guidance).

• Dimensions: 9.75" × 5.50" × 3.25" (L×W×H)

• Weight: 1.4 lb

Antenna ecosystem and L-band operation

Because Iridium phones operate in L-band, docked solutions typically rely on external antennas for best indoor/vehicle/vessel performance. A Canada Satellite listing categorizes the system frequency as L-band (1–2 GHz) and identifies use cases as fixed, maritime, vehicular, while DK050 documentation includes Iridium-band antenna characteristics and notes that the antenna cable loss and link margin requirements must be respected in system design.

Applications and Use Cases

Fixed office, remote facility, and indoor installations

A primary reason to deploy a docking station is to use an Iridium handheld phone from inside a building. DK050 documentation explicitly frames indoor docking as a way to “access satellite communication indoors,” with undocking for field use when leaving the office or site.

Maritime bridge, small vessel, and workboat communications

DK050 is marketed as suitable for captains’ phones and small boats, and vendor listings classify the dock as maritime and fixed use. In practice, the cradle provides a stable mounting point, charging, and better antenna placement—key for reliable calling at sea when the handheld may not have a clear sky view indoors.

Vehicle and emergency response deployments

The DK050 feature list explicitly calls out trucks and emergency vehicles. The wide-range 9–36 VDC input is well aligned with vehicle power systems, and the corded handset supports safer, more conventional calling inside a cab.

Enterprise continuity and “always-on” satellite voice readiness

Organizations that need a dependable back-up voice path (for example, during cellular outages or remote operations) often prefer docked satellite phones because the device stays powered, mounted, and connected to an external antenna—reducing time-to-call during a disruption.

Advantages / Benefits

Better usability than handheld-only operation

A docked Iridium 9555 setup typically provides easier day-to-day calling (especially with a corded handset), improved charging/power management, and clearer “system state” feedback via icons and tones.

Improved reliability through antenna integration

External antenna options and proper RF installation practices can substantially improve connectivity when operating inside vehicles and structures, where a handheld alone may struggle. The DK050 documentation includes antenna-band guidance and installation considerations.

“Smart Dial” and operator guidance

The Smart Dial concept and audible tone cues are aimed at reducing dialing mistakes and providing immediate feedback when the satellite path is compromised (e.g., satellite out of sight, low signal).

Designed for harsh operational contexts

The “rugged and secure locking restraint,” wide DC input range, and protected-location marine guidance are aligned with real-world maritime and vehicular environments.

FAQ Section

What is the BlueSky Docking Station w/ Handset for Iridium 9555 (ASE-DK050-H87)?

It is a docking cradle system that turns an Iridium 9555 satellite phone into a fixed/maritime/vehicular-installed voice solution, bundled with a corded privacy handset for local calling while the phone remains docked.

How does the ASE-DK050-H87 docking station work?

You dock the Iridium 9555 into the cradle, which provides charging and operational status feedback. The dock connects to external power (9–36 VDC) and supports a corded handset interface; it can also support data connectivity through a USB data interface, depending on the use case.

Why is the ASE-DK050-H87 important?

It improves everyday usability and readiness of an Iridium 9555 by keeping the phone mounted, powered, and easier to operate—especially indoors, on vessels, or in vehicles where handheld satellite operation can be inconvenient or unreliable.

What are the benefits of the ASE-DK050-H87?

Benefits commonly cited include built-in charging, hands-free operation, wide-range DC power input, Smart Dial guidance, a corded handset for privacy and clarity, and compatibility with external antenna options for improved indoor/vehicular use.

Does the docking station include the Iridium 9555 phone?

Typically no—reseller listings explicitly note the Iridium 9555 phone is not included with the docking station bundle.

Summary

The BlueSky / ASE Docking Station w/ Handset for Iridium 9555 (ASE-DK050-H87) is a purpose-built docking solution that enhances an Iridium 9555 satellite phone for fixed, maritime, and vehicular environments. By combining a secure cradle, wide-range DC power input, status indicators and tone guidance, optional data connectivity, and a corded privacy handset, it is designed to improve reliability and usability when satellite voice communications must be available indoors, on the move, or at sea.
